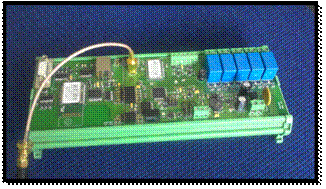

SERVER 100+


FEATURES:



COMMUNICATOR:



Processor

JN5168-001

32 bits, 32 MHz, RISC

Interfaces

RS232C/GPRS( TCP )

USB 2.0

Wireless LAN

SPI

SPI0 - with integrated 128 KB FLASH

SPI1 – internal unit

SPI2 – with 64MB onboard FLASH

Timers

3 16 bits programmable timers

24 bits programmable timer

Memory

128 KB fast memory  RAM

128 KB self-contained FLASH

64MB self-contained FLASH

Accessories

Integrated in communication infrastructure modules (2.4 GHz)

GPRS\TCP modem SIM900

Power supply

5V DC

Accessories

Integrated in communication infrastructure modules (2.4 GHz)

GPRS\TCP modem SIM900



PROCESS UNIT:



Processor

ATXmega32A4

8/16 bits, 32 MHz, RISC

Interfaces

RS485 ( RS485+)

RS 422 – for access to a remote camera uCAM-II

Wireless 433MHz LAN (SIM20)

Wire Bus (2 Independent highways to access remote sensors for measurement of temperature and humidity)

Timers

2 16 bits programmable timers

Relay outputs

5 pieces for external circuits control

Accessories

unit 1-wire bus thermometer  DS1823

unit 1-wire bus smart sensor for measuring temperature, humidity and 5 opto uncoupled digital inputs.

Power supply

12-24V DC ( supplies also the Communicator ).
