SEN 100+

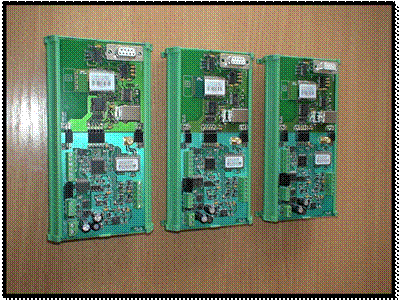

SEN100+ sensor unit

FEATURES:

COMMUNICATOR:

Processor	JN5168-001 32 bits, 32 MHz, RISC
Interfaces	RS232C/GPRS( TCP ) USB 2.0 Wireless LAN SPI SPI0 - with integrated 128 KB FLASH  SPI1 – internal unit SPI2 – with 64MB onboard FLASH
Timers	3 16 bits programmable timers 24 bits programmable timer
Memory	128 KB fast memory RAM 128 KB self-contained FLASH 64MB self-contained FLASH
Accessories	Integrated in communication infrastructure modules (2.4 GHz) GPRS\TCP modem SIM900
Power supply	5V DC

PROCESS UNIT:

Processor	ATXmega32A4 8/16 bits, 32 MHz, RISC
Interfaces	RS485 ( RS485+) RS 422 – for access to a remote camera uCAM-II Wireless 433MHz LAN (SIM20) 1-Wire Bus (2 Independent highways to access remote sensors for measurement of temperature and humidity) SPI – internal unit
Timers	2 16 bits programmable timers
Accessories	unit remote camera uCAM-II  unit 1-wire bus thermometer  DS1823 unit 1-wire bus smart sensor for measuring temperature, humidity and 5 opto uncoupled digital inputs.
Power supply	12-24V DC
